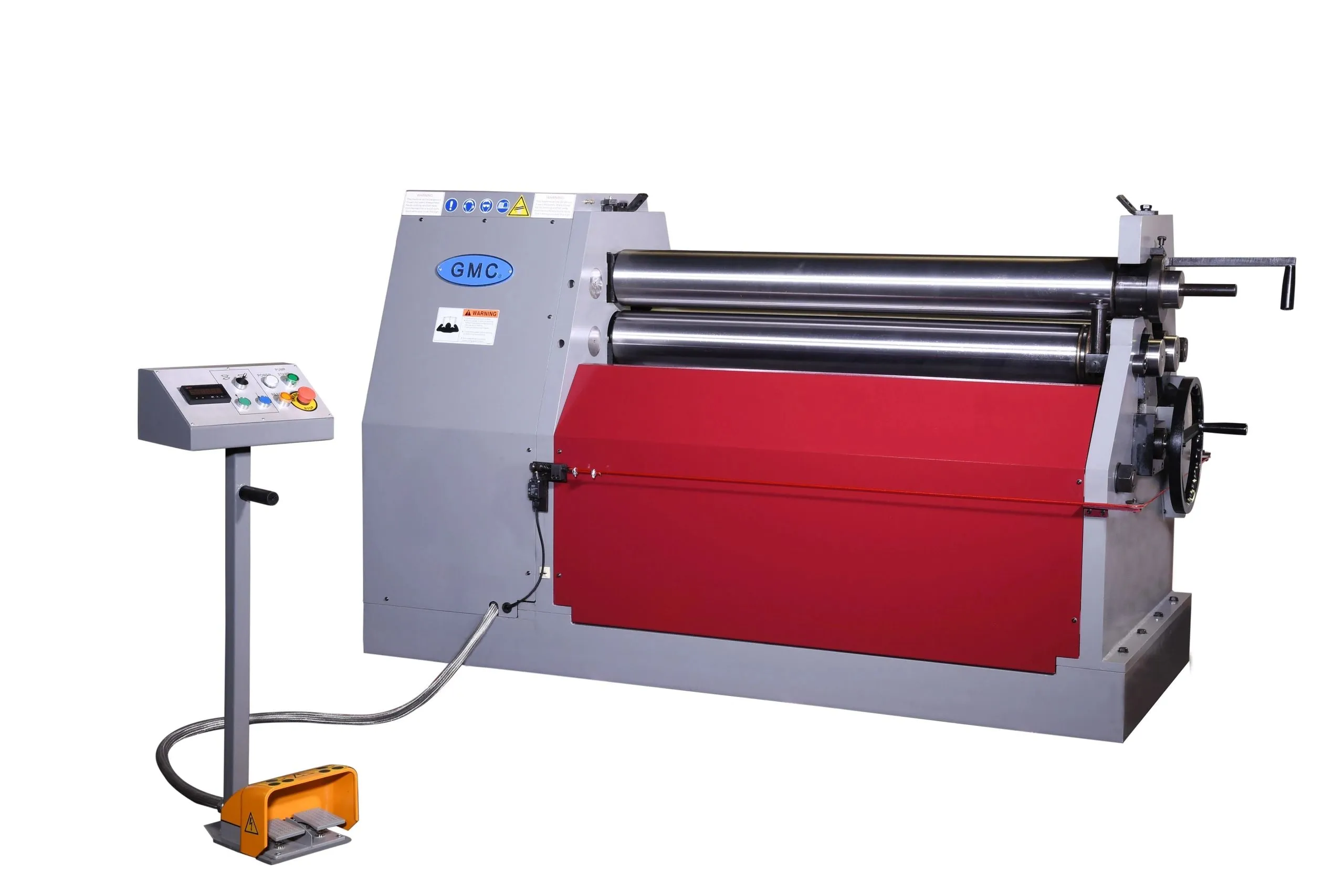

GMC HYD. PLATE BENDING ROLL 4' X 1/4" MDL HBR-0425
Model # HBR-0425, 52” x ¼”, 3 HP, 220/440V, 3PH
Product Description

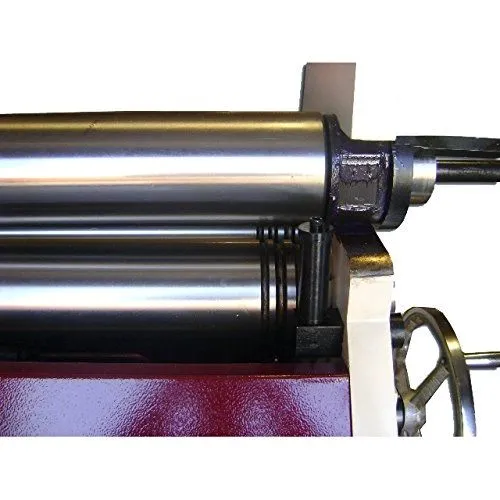

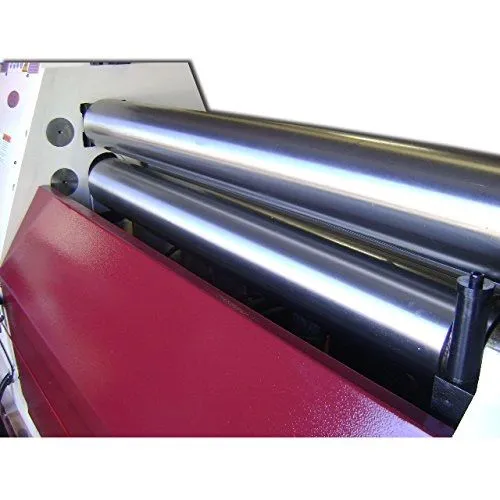

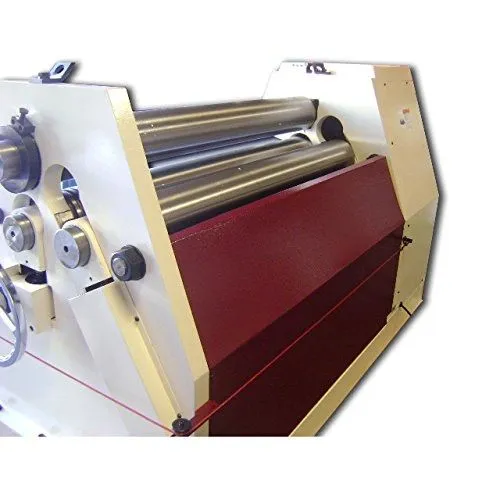

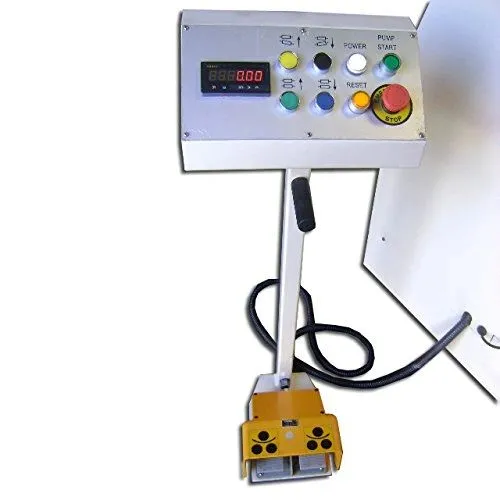

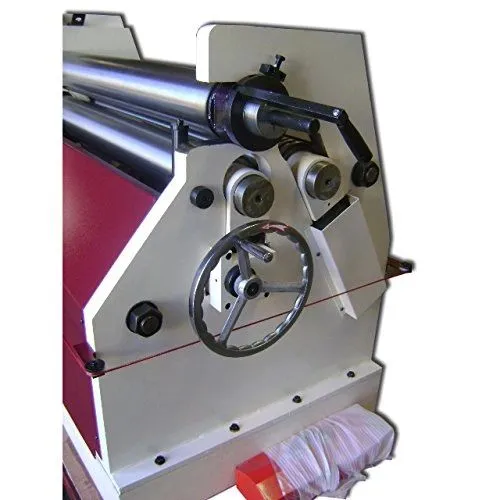

ISO 9001 certified Taiwan Machines Easy swing -out top roller Standard cone attachment installed 1 each LED indicator for bending roll position Safety line all around the machine for emergency stop Heavy Duty all steel welded machine construction German Hydraulic logic system centrally located and quiet Bending roll is hydraulic powered up/down & tilting adjustment Planetary reduction gear and pump All three rolls are made of high grade alloy steel All rolls run forward and reverse Safety type foot pedal control Overload protection and disconnect switch Power source 208V/220V, (Option 460 V, 3 phase) STANDARD ITEMS: LED readout indicator for bending roll position Safety line all around the machine for emergency stop Removable safety foot pedal Tool Box Cone attachment ( to make cone parts ) (3) wire grooves 3/8", 1/2", 5/8" on roll for bending wire
